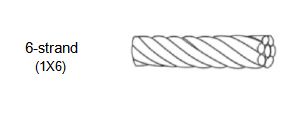

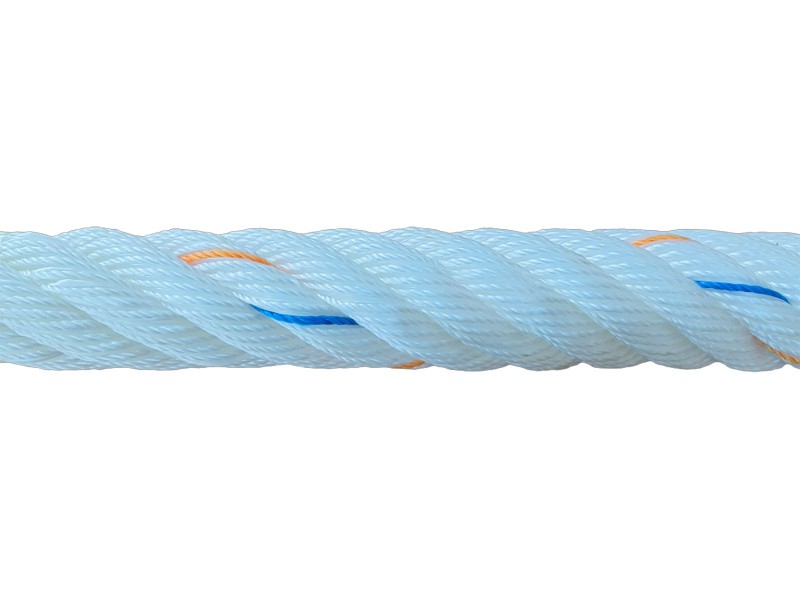

6- Strand Rope

PREV： Return to previous page NEXT： Return to previous page

Description

There are serial varieties of polyamide, polypropylene filaments (thread), polyester ect. with size from φ28MM-φ80MM and advantages of high strength, low elongation, wear and erosion resisting. anti-static electricity, smooth and soft and easy operation ect.

They are mainly used in ocean transportation. fish harvesting, harbor loading/unloading. National Defense and military industry, petroleum survey ect.

Specifications

Specifition	Nylon		Polypropylene		Polyester
Dia	Weight	Breaking strength	Weight	Breaking strength	Weight	Breaking strength
mm	Kg/220m	kN	Kg/220m	kN	Kg/220m	kN
28	105.0	202	87	128	130	133
32	141.0	260	115	142	175	163
36	180.0	302	145	196	221	200
40	220.0	352	180	235	270	249
44	265.0	415	215	276	325	295
48	315.0	483	255	316	385	348
52	370.0	573	295	365	445	405
56	430.0	652	350	414	525	467
60	490.0	732	402	479	600	515
64	560.0	855	455	538	680	600
72	710.0	1102	575	670	860	745
80	880.0	1280	710	818	1060	918
