English- Material: High-Performance Polypropylene
- Specific Gravity: 0.94 (Positive Buoyancy)
- Elongation at Break: 22%
- Melting Point: 165°C
- Key Properties:
- Excellent UV & Chemical Resistance
- High Abrasion Resistance
- High Tensile Strength with Controlled Elongation
POLYNEXLINE -D
POLYNEXLINE -D
Description

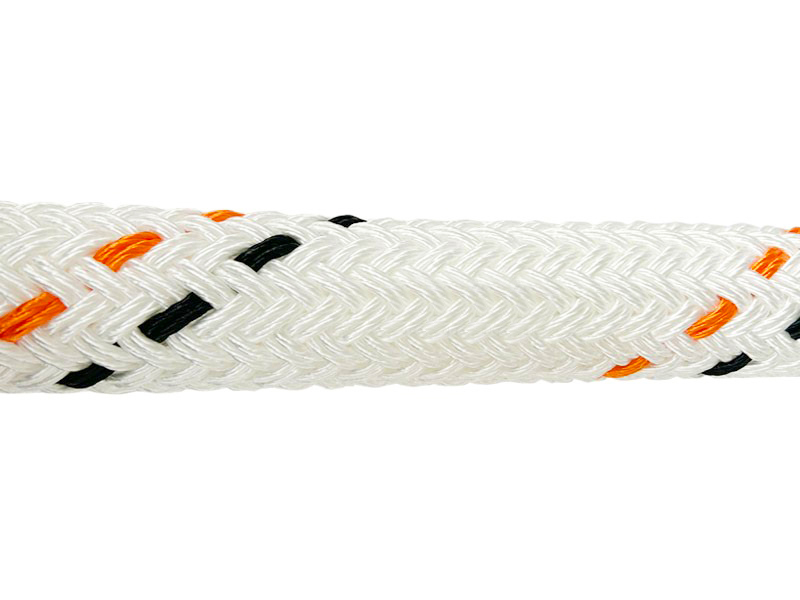

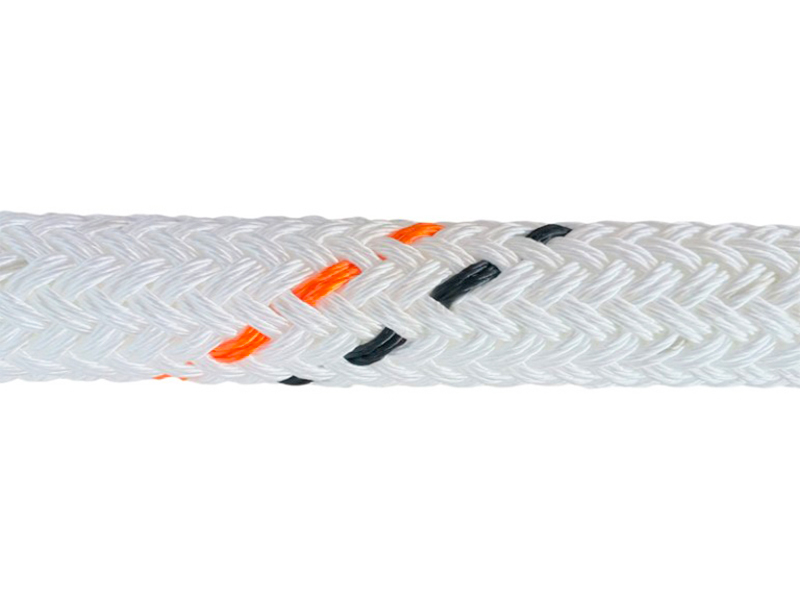

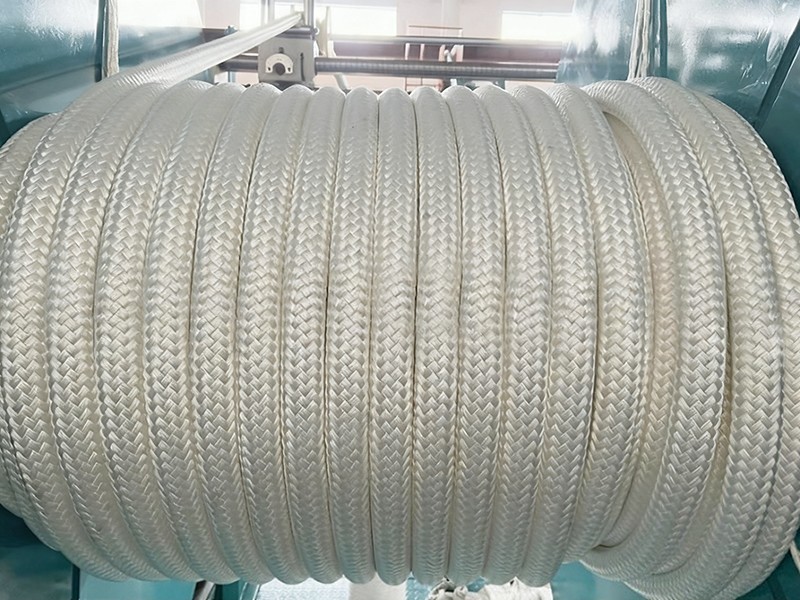

POLYNEXLINE-D is a double-braided synthetic rope consisting of a 12-strand core sheathed by a 32-strand abrasion-resistant jacket, both produced from PP/PE copolymer fibers. The external jacket provides enhanced resistance to abrasion, cutting, and UV degradation while maintaining the load-bearing integrity of the core structure. This configuration achieves tensile strength performance consistent with standard polypropylene ropes while offering improved durability. The product is designed for applications requiring synthetic fiber ropes with extended service life under demanding operating conditions.
Specifications
|
Applications: Mooring line, Tug line, Offshore, Other industrial heavy-duty use |
||||||
|
Size |
Weight |
Breaking strength |
||||
|
Dia(inch) |
Cir(inch) |
Dia(mm) |
220m(kg) |
600ft(Ib) |
ton |
kN |
|
1-5/16 |
4 |
32 |
119 |
218.00 |
19.00 |
185 |
|
1-7/16 |
4-12 |
36 |
150 |
275.00 |
23.00 |
225 |
|
1-5/8 |
5 |
40 |
182 |
333.00 |
28.00 |
275 |
|
1-3/4 |
5-1/2 |
44 |
222 |
407.00 |
33.00 |
325 |
|
1-15/16 |
6 |
48 |
264 |
484.00 |
39.00 |
381 |
|
2-1/8 |
6-12 |
52 |
308 |
564.00 |
45.00 |
438 |
|
2-14 |
7 |
56 |
340 |
623.00 |
50.00 |
488 |
|
2-3/8 |
7-1/2 |
60 |
384 |
703.00 |
55.00 |
542 |
|
2-1/2 |
8 |
64 |
435 |
797.00 |
65.00 |
635 |
|
2-718 |
9 |
72 |
535 |
980.00 |
76.00 |
745 |
|
3-1/4 |
10 |
80 |
678 |
1242.00 |
94.00 |
923 |
|
3-1/2 |
11 |
88 |
820 |
1502.00 |
114.00 |
1120 |
|
3-3/4 |
12 |
96 |
975 |
1786.00 |
148.00 |
1450 |
|
4-1/8 |
13 |
104 |
1140 |
2088.00 |
165.00 |
1620 |
|
4-1/2 |
14 |
112 |
1320 |
2418.00 |
189.00 |
1850 |
|
4-3/4 |
15 |
120 |
1518 |
2781.00 |
216.00 |
2120 |
|
5-1/8 |
16 |
128 |
1700 |
3114.00 |
243.00 |
2380 |
|
5-3/8 |
17 |
136 |
1915 |
3508.00 |
270.00 |
2650 |
|
5-11/16 |
18 |
144 |
2175 |
3984.00 |
304.00 |
2980 |
***5% tolerance according to ISO2307
Ready to Engineer Your Solution?
We specialize in custom-engineered synthetic fiber ropes, tailored to your unique applications, load requirements, and environmental conditions. As a trusted manufacturer, we offer a wide range of constructions—from 3 to 48 strands and double braids, with diameters from 3 mm to 280 mm—to deliver reliable solutions for the most demanding scenarios.
