English- Construction: 12-Strand, Double-Braided (Core + Protective Jacket)
- Core Material: HMPE (UHMWPE)
- Jacket Material: Braided Polyester
- Specific Gravity: >1.0 (Sinking)
- Melting Point: 147°C (HMPE) / 260°C (Polyester)
- Chemical Resistance: Good
- UV Resistance: Excellent

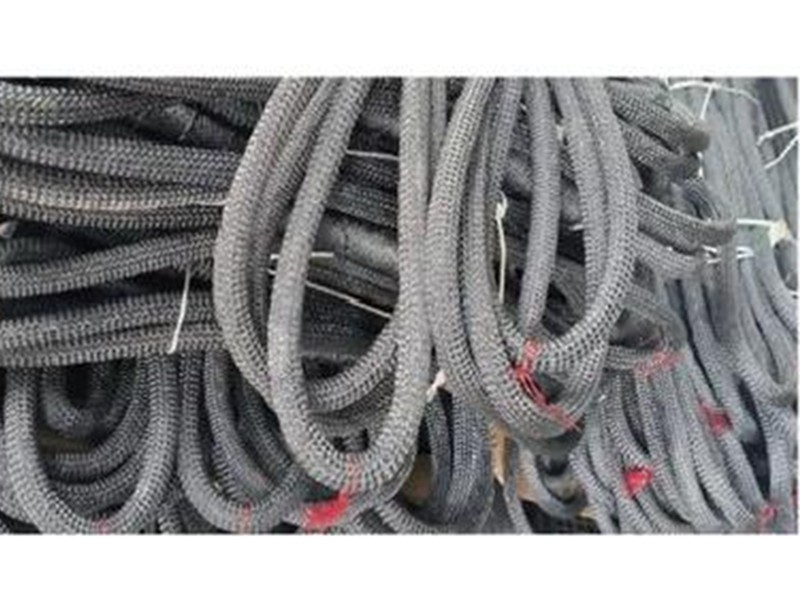

Pumping Unit Pulling Rope
Pumping Unit Pulling Rope
Description
This pumping unit pulling rope matches the strength and breaking elongation of steel wire rope at the same diameter, while offering significant advantages in weight and durability.
Key Advantages over Steel Wire Rope:
- Lightweight: Weighs only 12% of steel wire rope at the same breaking strength.
- Easy to Install: Lighter weight makes replacement easier and safer.
- Enhanced Protection: Full-length protective jacket made of high-strength polyester, impregnated with a wear-resistant coating.
- Superior Durability: Better resistance to abrasion, chemicals, and UV exposure, significantly extending service life.
Specifications
|
Size (mm) |
Linear Density |
Minimum Breaking Strength (kN) |
|
|
Ktex |
Allowable Deviation(%) |
||
|
24 |
331 |
±5 |
180 |
|
32 |
575 |
±5 |
360 |
|
36 |
720 |
±5 |
540 |
|
40 |
881 |
±5 |
690 |
|
44 |
1060 |
±5 |
800 |
|
48 |
1250 |
±5 |
960 |
Ready to Engineer Your Solution?
We specialize in custom-engineered synthetic fiber ropes, tailored to your unique applications, load requirements, and environmental conditions. As a trusted manufacturer, we offer a wide range of constructions—from 3 to 48 strands and double braids, with diameters from 3 mm to 280 mm—to deliver reliable solutions for the most demanding scenarios.
