Single Point Mooring Rope

Single Point Mooring Rope
Single Point Mooring Rope

Single Point Mooring Rope

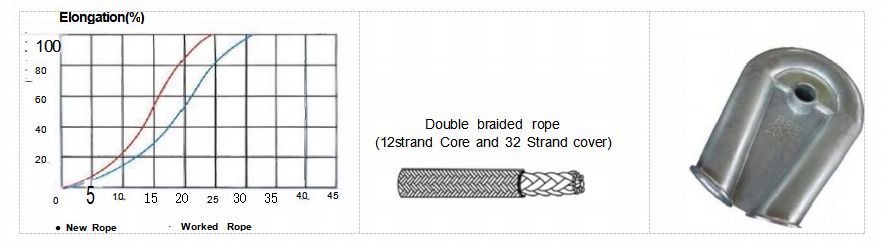

  • Structure: 12-strand core with 32-strand protective jacket
  • Terminations: Galvanized cast thimbles with polyurethane coating at splice points
  • Material: High-grade polyamide (Nylon) fiber
  • Specific Gravity: 1.14 (Sinking characteristic)
  • Melting Point Range: 218-258°C (Typical for polyamide fibers)
  • Abrasion Resistance: Excellent (Enhanced by protective jacket design)
  • UV Resistance: Good
  • Tensile Strength: High (Maintained under wet conditions)

Description

Single-Point Mooring Rope is a high-performance 12-strand nylon mooring rope engineered with a specialized 32-strand protective jacket.This composite construction combines a load-bearing nylon core with an abrasion-resistant outer sheath, delivering exceptional strength and durability for demanding single-point mooring applications.

This engineered mooring solution provides secure and reliable performance while maintaining full compliance with international offshore standards.

Key Advantages:

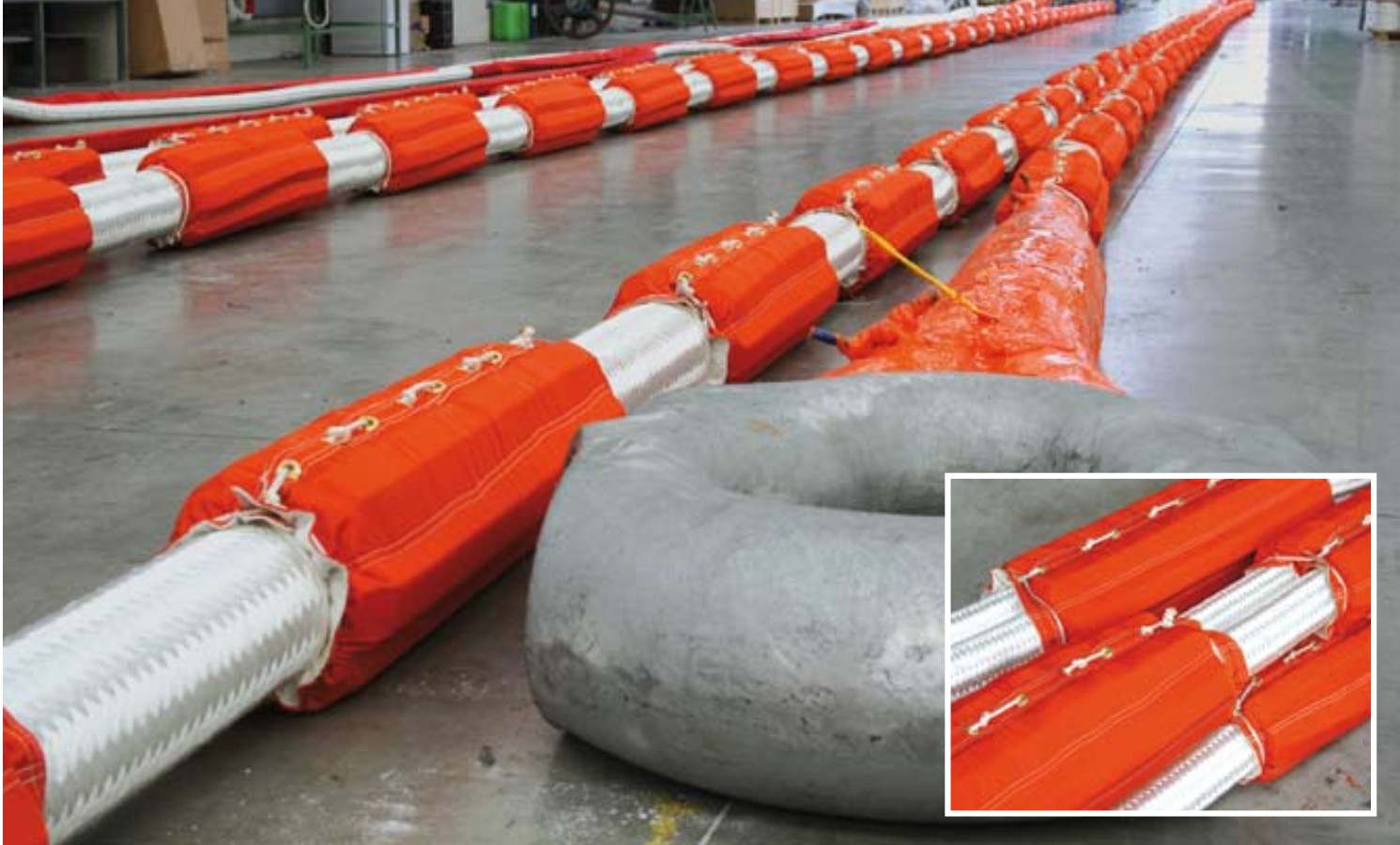

The sinking characteristic (SG: 1.14) is compensated by integrated buoyancy elements

Superior abrasion resistance through protective jacket design

Excellent strength-to-weight ratio with controlled elongation

Enhanced durability in harsh marine environments

Reliable performance in dynamic loading conditions

Specifications

Applications: Suitable for offshore oil platforms

Size

Weight

Breaking Strength

Dia(mm)

Cir(inch)

Kg/100m

Single Leg

Grommet

80

10

398

148

252

88

11

482

179

304

96

12

572

208

354

104

13

672

250

425

112

14

772

288

490

120

15

887

327

556

128

16

1010

368

626

136

17

1140

419

712

144

18

1280

460

782

152

19

1420

501

852

160

20

1580

551

937

168

21

1740

599

1018

***Other sizes are available upon request.

Ready to Engineer Your Solution?
We specialize in custom-engineered synthetic fiber ropes, tailored to your unique applications, load requirements, and environmental conditions. As a trusted manufacturer, we offer a wide range of constructions—from 3 to 48 strands and double braids, with diameters from 3 mm to 280 mm—to deliver reliable solutions for the most demanding scenarios.
